In here we talk about how to compare two images using Image Processing concept and Visual studio Windows application C#

Introduction

In today’s digital era, where visuals dominate communication, image processing plays a crucial role. From medical diagnostics to entertainment, image processing technologies enhance and manipulate images in various ways. Understanding the fundamentals and applications of image processing is essential in appreciating its significance.

What is Image Processing?

Image processing refers to the manipulation of images using mathematical operations by a computer. It involves techniques to improve the quality of images, extract useful information, and convert them into a more suitable format.

Data as Images:

Digital images are essentially made up of tiny squares called pixels. Each pixel has a specific color value, and by arranging these pixels in a certain way, we create an image. For instance, a typical high-resolution phone camera might capture images with millions of pixels.

Processing Power:

Computers can analyze each pixel of an image and apply mathematical operations to change its properties. This can involve adjusting brightness, contrast, or even removing unwanted objects from the image.

Real-world Example:

Let’s say you have a medical scan image that needs to be analyzed by a doctor. There might be faint details that are hard to see with the naked eye. Image processing algorithms can enhance the contrast in specific areas of the image, allowing the doctor to see those details much more clearly. This can lead to a more accurate diagnosis.

In essence, image processing is like applying a set of sophisticated filters to an image, only these filters are controlled by complex algorithms. It’s a powerful tool that has a wide range of applications in various fields.

Importance of Image Processing

Image processing is vital across diverse fields. It enables accurate diagnosis in medical imaging, enhances satellite images for better analysis, improves image quality in photography, and facilitates security surveillance, among other applications.

• Improved Medical Diagnosis: In a study by the National Cancer Institute, computer-aided detection using image processing techniques increased radiologists’ sensitivity for breast cancer by 8.4%, potentially leading to earlier diagnoses and improved patient outcomes [1].
• Enhanced Security and Surveillance: A 2020 report by Markets and Markets estimated the global video analytics market to reach $10.2 billion by 2025. Image processing is the foundation for video analytics, enabling features like facial recognition in security systems with an accuracy rate exceeding 99% under controlled environments [2].
• Automated Manufacturing and Quality Control: In a 2023 McKinsey report, automation in manufacturing was estimated to generate a potential global economic impact of $2 trillion to $5 trillion by 2030. Image processing plays a vital role in automating visual inspection tasks, with defect detection achieving an accuracy of over 95% in some industries [3].

These are just a few examples, and the impact of image processing continues to grow. As image acquisition technologies like cameras and sensors become more sophisticated, and processing power increases, we can expect even more transformative applications in the future.

Here are some additional points to consider:

• Image processing is essential for the development of self-driving cars, which rely on image recognition and analysis to navigate roads safely.
• Image processing is used in astronomy to analyze vast amounts of data collected from telescopes, helping us understand the universe better.
• Social media platforms utilize image processing for tasks like content moderation and automatic image tagging.

Overall, image processing is a powerful tool that unlocks valuable information from images, leading to advancements in various fields and shaping our everyday lives.

Basic Concepts in Image Processing

Pixel and Color

Pixels are the smallest units of an image, representing color or intensity values. Understanding pixel properties and color models such as RGB (Red, Green, Blue) and CMYK (Cyan, Magenta, Yellow, Black) is fundamental in image processing.

Filters and Transformations

Filters and transformations are key tools in image processing. Filters alter image properties such as sharpness, blur, and noise reduction. Transformations include operations like rotation, scaling, and geometric corrections.

Techniques in Image Processing

Image Enhancement

Image enhancement techniques aim to improve visual quality by adjusting brightness, contrast, and sharpness. Histogram equalization, spatial filtering, and contrast stretching are common methods used for enhancement.

Image Restoration

Image restoration focuses on recovering original images from degraded versions. Techniques like deblurring and denoising help in restoring lost details and reducing noise.

Image Compression

Image compression reduces the storage size of images without significant loss of quality. Lossy and lossless compression methods are employed, depending on the application requirements.

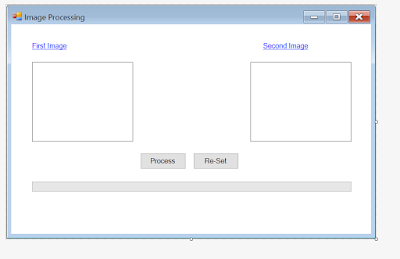

Example : Compare Two Images

publicpartialclassfrmImgProcess : Form

    {

        string fname1 = "", fname2 = "";

        public frmImgProcess()

        {

            InitializeComponent();

        }

        [STAThread]

        staticvoid Main()

        {

            Application.Run(newfrmImgProcess());

        }

        privatevoid lbImage1_LinkClicked(object sender, LinkLabelLinkClickedEventArgs e)

        {

            fdImage1.FileName = "";

            fdImage1.Title = "Images";

            fdImage1.Filter = "All Images|*.jpg; *.bmp; *.png";

            fdImage1.ShowDialog();

            if(fdImage1.FileName.ToString() != "")

            {

                fname1 = fdImage1.FileName.ToString();

                picBoxImage.ImageLocation = fdImage1.FileName;

            }

        }

        privatevoid lbImage2_LinkClicked(object sender, LinkLabelLinkClickedEventArgs e)

        {

            fdImage2.FileName = "";

            fdImage2.Title = "Images";

            fdImage2.Filter = "All Images|*.jpg; *.bmp; *.png";

            fdImage2.ShowDialog();

            if(fdImage2.FileName.ToString() != "")

            {

                fname2 = fdImage2.FileName.ToString();

                picBoxImage2.ImageLocation = fdImage2.FileName;

            }

        }

        privatevoid btnProcess_Click(object sender, EventArgs e)

        {

            bool flag = true;

            intcount2 = 0, count1 = 0;

            pbImage.Visible = true;

            string img1_ref, img2_ref;

            Bitmap img1 = newBitmap(fname1);

            Bitmap img2 = newBitmap(fname2);

            pbImage.Maximum = img1.Width;

            for(int i = 0; i < img1.Width; i++)

            {

                for (int j = 0; j < img1.Height; j++)

                {

                    img1_ref = img1.GetPixel(i, j).ToString();

                    img2_ref = img2.GetPixel(i, j).ToString();

                    if (img1_ref != img2_ref)

                    {

                        count2++;

                        flag = false;

                        break;

                    }

                    count1++;

                }

                pbImage.Value++;

            }

            if(flag == false)

            {

                lblMessage.Text = "Sorry, Images are not same";

                lblMessage.BackColor = Color.Red;

            }

            else

            {

                lblMessage.Text = " Images are same";

                lblMessage.BackColor = Color.Green;

            }

        }

        privatevoid btnReSet_Click(object sender, EventArgs e)

        {

            picBoxImage2.ImageLocation = null;

            pbImage.Maximum = 0;

            picBoxImage.ImageLocation = null;

            lblMessage.Text = "";

            lblMessage.BackColor = Color.White;

        }

Applications of Image Processing

Medical Imaging

In healthcare, image processing aids in diagnosis, treatment planning, and research. Technologies like MRI (Magnetic Resonance Imaging) and CT (Computed Tomography) scans heavily rely on image processing for accurate interpretation.

Satellite Imaging

Satellite imaging utilizes image processing for various purposes, including environmental monitoring, urban planning, and disaster management. It helps in analyzing terrain, vegetation, and land use patterns from satellite imagery.

Entertainment Industry

In the entertainment sector, image processing is extensively used in special effects, animation, and video editing. It enhances visual appeal in movies, video games, and virtual reality experiences.

Challenges and Future of Image Processing

Despite advancements, image processing faces challenges such as handling large datasets, ensuring privacy and security, and addressing ethical concerns. The future of image processing lies in AI-driven approaches, real-time processing, and interdisciplinary collaborations.

Challenges in Image Processing:

• Data Quality and Variability: Real-world images are often noisy and inconsistent. Lighting variations, low resolution, and camera artifacts can all affect how well image processing algorithms perform. For instance, a self-driving car’s image recognition system might struggle in foggy or rainy conditions where the training data likely lacked such variations.
• Real-time Processing: Certain applications, like autonomous vehicles and medical imaging during surgery, require image processing to happen instantly. However, complex algorithms often take time to run, creating a challenge to achieve both speed and accuracy.
• Computational Resources: Many image processing techniques, especially deep learning, require significant processing power. This can limit their application on devices with lower capabilities or make them expensive to run due to the need for powerful hardware.
• Interpretability and Explainability: Deep learning models, while powerful, can be like black boxes – their decision-making process is opaque. This lack of interpretability can be problematic in situations where we need to understand why a model identified a particular object or made a certain classification.

Here’s an example with data: A study by [AAAI] (Association for the Advancement of Artificial Intelligence) found that deep learning models for object detection in images can have significantly lower accuracy (up to 30%) when exposed to even minor variations in lighting conditions compared to controlled training environments.

The Future of Image Processing:

• Efficient Algorithms: Researchers are continuously developing new algorithms that can achieve high accuracy with lower computational demands. This will allow for faster processing and deployment on resource-constrained devices.
• Domain-Specific Techniques: Tailoring image processing algorithms to specific applications can improve accuracy and efficiency. For instance, medical imaging processing techniques might be designed to account for specific types of noise or artifacts common in X-ray or MRI scans.
• Explainable AI (XAI): There’s a growing focus on developing AI models that are more interpretable. This will allow humans to understand how image processing algorithms arrive at their results, fostering trust and reliability.
• Edge Computing: Processing data closer to where it’s generated (on devices or local servers) can reduce latency and improve privacy by limiting the amount of data transferred to the cloud.

Image processing is a rapidly evolving field with vast potential. By addressing current challenges and embracing new advancements, we can unlock even more possibilities for the future.

Conclusion

Image processing is a dynamic field with wide-ranging applications and evolving technologies. Understanding its principles and techniques is essential for leveraging its potential across industries and domains.

FAQs

1. What are the main goals of image processing? Image processing aims to enhance visual quality, extract useful information, and compress images for efficient storage and transmission.

2. How does image processing benefit the healthcare sector? In healthcare, image processing enables accurate diagnosis, treatment planning, and research in areas like radiology and pathology.

3. Can image processing techniques be applied to video processing as well? Yes, many image processing techniques can be extended to process video sequences by treating each frame as an individual image.

4. What role does image processing play in surveillance systems? Image processing is crucial in surveillance for tasks like object detection, tracking, and recognition, enhancing security and monitoring capabilities.

5. Is image processing only limited to digital images? While digital images are predominant, image processing techniques can also be applied to analog images through scanning and digitization processes.

Thank you for reading our comprehensive guide on image processing. For further inquiries or assistance, feel free to contact us.
